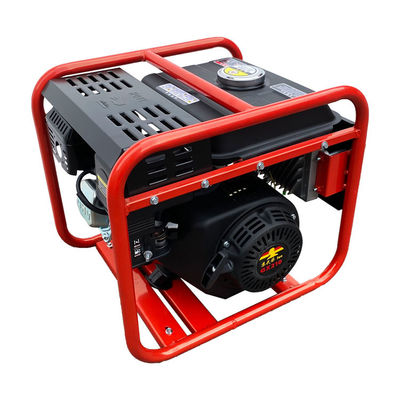

Generator | Model | S3i | ||
Frequency (HZ) | 50 | |||
Max. Output (KW) | 3 | |||
Rated output (KW) | 2.8 | |||
Rated. AC voltage (V) | 230V | |||
Power factor (cosΦ ) | cosΦ =1 | |||
Rated current(A) | 12.5 | |||
Starting system | Recoil | |||
Fuel tank capacity (L) | 5 | |||
Operation Altitude(m) | ≦4000 | |||
Executive Standard | JB/T 10304-2020 | |||
Engine | Model | 170F | ||
Engine type | Single- cylinder, air-cooled, 4-stroke | |||
Displacement(cc) | 208 | |||
Bore× stroke (mm) | 70*54 | |||
Cooling system | Forced air cooling | |||
Ignition system | Transistor ignition | |||
Fuel | gasoline | |||
Lubrication oil volume (L) | 0.6 | |||
Combustion system | Direct lnjection | |||
Dimensions | Dimension (L× W× H)(mm) | 450*380*470 | ||
Net weight(kg) | 23 | |||
Gross weight(kg) | 24.4 | |||
